Divider 300 TG Mid Tower Chassis

Divider 300 TG Mid Tower Chassis

In stock
P/N
CA-1S2-00M1WN-00
USD$79.99
The Divider 300 TG is an ATX mid tower chassis that comes with one 120mm standard rear fan, two 3mm tempered glass windows at the front and on the left side.

Thermaltake

Divider 300 TG

Showcase Your System in a Particular Way

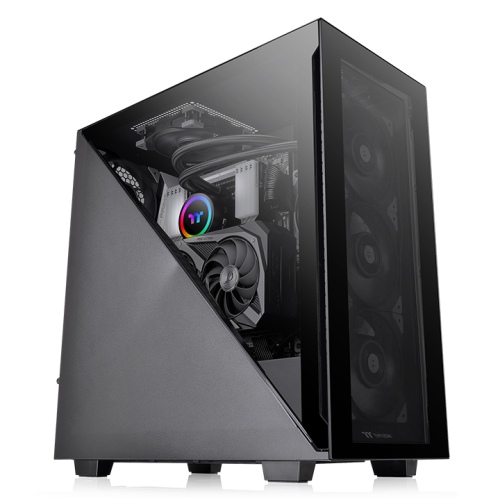

Divider 300 TG Mid Tower Chassis

Thermaltake designed a brand-new case series that contains a mixture of open frame style elements and customizable options blending all the functionalities into the Divider Series. The most exceptional feature of the Divider 300 TG Mid Tower Chassis is the two symmetrical triangular pieces comprised of a steel panel and tempered glass window. These panels are tool-free and easy to remove, offering a clear view of the components inside. The Divider 300 TG Mid Tower Chassis is the next-gen gaming PC case for regular users, enthusiasts, and gamers, giving them unprecedented satisfaction.


  • The image is for reference only.
  •


Tempered Glass Panels

The two 3mm tempered glass windows at the front and on the left side of the Divider 300 TG are thicker and more scratch resistant when compared to standard acrylic. The triangular tempered glass window can be removed individually, giving you an additional option to show your components and system.




  • The image is for reference only.
  •

Air Intake and Exhaust

The cooling performance of the Divider 300 TG is admirable. The venting gaps on two sides of the front tempered glass allows an optimal air intake and additional cooling for exhaust is located at the top and rear of the case.


  • The image is for reference only.
  •
Idle and Full-load Temperature

To let our customers better understand the thermal performance of the Divider 300 TG Mid Tower Chassis, we ran a test system at idle and full-load. We used AIDA64 Extreme Portable and FurMark ASUS ROG Edition both running at the same time for 30 minutes, and the thermal images were taken with Testo 885-2 Thermal Imaging Camera.

Specification

Motherboard ASUS Prime X570 Pro
CPU AMD Ryzen7 3700X
GPU ASUS ROG-STRIX RTX 3090-O24G-GAMING
RAM Floe RC360 CPU & Memory AIO Liquid Cooler (Four sticks of DDR4 3200 8G)
PSU Toughpower PF1 ARGB 850W Platinum
CPU Cooler Floe RC360 CPU & Memory AIO Liquid Cooler
Fans Floe RC360 CPU & Memory AIO Liquid Cooler (Seven Pure ARGB 120mm fans)
Software 1. AIDA64 Extreme Portable 2. FurMark ASUS ROG Edition
Full load 30 min
Camara Testo 885-2 Thermal Imaging Camera
  • Idle
    Full-load
  • Idle
    Full-load

Excellent Hardware Support & Cooling Solution
The Divider 300 TG has good hardware support. It can support a CPU cooler with a maximum height of 145mm, VGA with a maximum length of 390mm (without radiator), a power supply with a length of up to 220mm (without HDD cage), a total of two 3.5” HDDs or seven 2.5” SSDs. When it comes to the cooling solution, the Divider 300 TG is preinstalled with one 120mm standard rear for hot air exhaust. Moreover, it can hold up to one 140mm fan at the top and two 120mm fans on the right of the motherboard side. Moreover, the Divider 300 TG is optimized for air cooling and advanced AIO liquid cooling components. It can support AIO 360mm at the front, 240mm on the motherboard side, and 120mm at the rear.
  • 120mm
  • 140mm
  • 120mm
  • 140mm
  • 240mm
  • 280mm
  • 360mm






More Information
P/N CA-1S2-00M1WN-00
Series Divider
Model Divider 300 TG
CASE TYPE Mid Tower
Dimension (H x W x D) 475 x 220 x 461 mm
(18.7 x 8.66 x 18.1 inch)
NET WEIGHT 8.47 kg / 18.67 lbs.
SIDE PANEL Tempered Glass x 2
Color Black
MATERIAL SPCC
COOLING SYSTEM Rear(exhaust):
120 x 120 x 25 mm Turbo fan (1000rpm, 16 dBA) x 1
EXPANSION SLOTS 7 (Rotatable Patented Design)
MOTHERBOARDS 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O Port USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
FAN SUPPORT Front: 3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Top: 1 x 120mm, 1 x 140mm
Right (M/B Side): 2 x 120mm, 1 x 120mm
Rear: 1 x 120mm
RADIATOR SUPPORT Front: 1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Right (M/B Side): 1 x 240mm, 1 x 120mm
Rear: 1 x 120mm
CLEARANCE CPU cooler height limitation: 145mm
VGA length limitation: 360mm(With radiator)
390mm(Without radiator)
PSU length limitation: 180mm (With HDD Cage)
220mm(Without HDD Cage)
Other Drive Bays : Total of 2 x 3.5” HDDs and 5 x 2.5”SSDs or Total of 7 x 2.5” SSDs
