Built for those who need all the cooling their case can handle, the Versa J24 is custom built for the very best tempered
glass and mesh paneling have to offer.
In designing the J24, we tried to keep the case as clean and sleek as possible, while maintaining
airflow and plenty of space to work in.
The Versa J24 is the Swiss army knife of modern cases, giving you plenty of space for high-end
hardware, and all the utility benefits you need.
* The image is for reference only.
* One standard 120mm fan is included.
With a built-in power supply cover, the J24 features plenty of ventilation to keep your power supply cool while also hiding away all those cables.
*The image is for reference only;
*One standard 120mm fan is included.

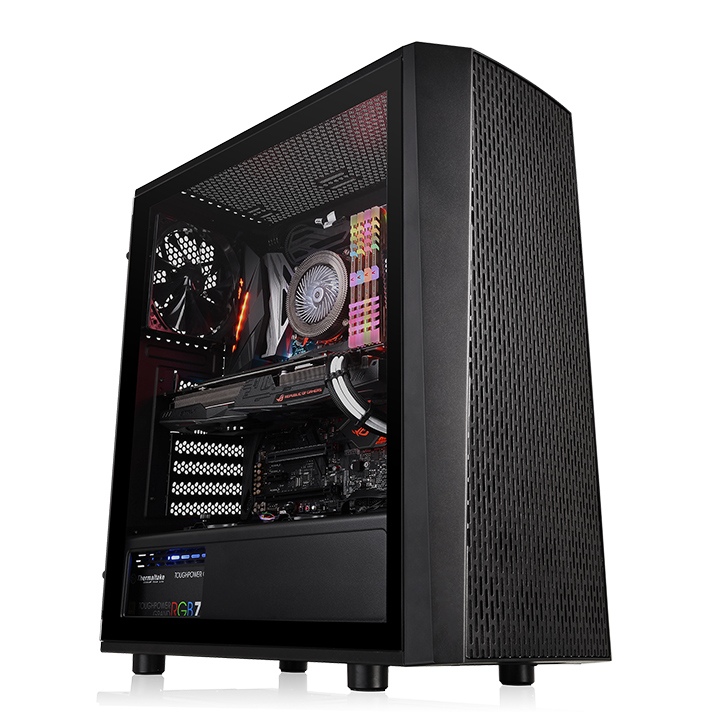

Tempered Glass Window
The left side of the J24 features a full length 4mm thick tempered glass panel, which is more
durable and less prone to scratches and dust than acrylic panels. The tempered glass window
is designed to slide into place and can be attached firmly with just two screws at the rear
panel.
Tool-Free Installation
Forget fiddly drive bays and running out of space where you need it. The Versa J24 features totally
tool-less drive bays that are interchangeable between above and below the power supply cover,
as well as behind the motherboard tray for a total of seven expansion slots.
3.5” or 2.5” HDD Drive Compatible
Don’t skimp on the power – the J24 gives you all the space you need for high-end hardware. It can fit a tower CPU cooler with a maximum height of 160mm, a dual expansion slot VGA cards of up to 330mm in length, and a power supply with length of up to 160mm.
* The image is for reference only.
* One standard 120mm fan is included.
The J24 is designed to make the most of that mesh front panel, whether you prefer air cooling
or liquid. It comes fitted with one exhaust fan at the rear, but you can comfortably fit
three 120mm or two 140mm fans behind the front panel, as well as two 120/140mm fans at the
top.
If you prefer liquid cooling, you can fit a 360mm radiator behind the front panel and comfortably
cool your internals that way.
* The image is for reference only.
* One standard 120mm fan is included.
The Versa J24 puts airflow first, offering full mesh front and top panels, as well as angular modern styling. This case is all about getting work done and looking cool while you do it.
With easy-access USB 2.0 and 3.0 ports on the front of the case, the Versa J24 is built for work as well as play.
|
|||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
Fan Supporting List
|
|||||||||||||||||||||||||
|
||||||||||||||||||||
| P/N | CA-1L7-00M1WN-00 |
|---|---|
| Series | Versa |
| Model | Versa J24 TG |
| CASE TYPE | Middle tower |
| Dimension (H x W x D) |
462 x 206 x 414 mm (18.48 x 8.2 x 16.55 inch) |
| NET WEIGHT | 5.6 kg / 12.34 lb |
| PANEL | 4mm Tempered Glass x1 |
| Color | Exterior & Interior : Black |
| MATERIAL | SPCC |
| COOLING SYSTEM |
Rear (exhaust) : 120 x 120 x 25 mm fan (1000rpm, 16dBA) |
| Drive Bays -Accessible -Hidden |
2 x 2.5”(HDD Bracket) 2 x 3.5“ or 2.5” (HDD Tray) |
| EXPANSION SLOTS | 7 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O Port | USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT |
Front: 3 x 120mm, 2 x 140mm Top: 2 x 120mm, 2 x 140mm Rear: 1 x 120mm |
| RADIATOR SUPPORT |
Front: 1 x 360mm Rear: 1 x 120mm |
| CLEARANCE |
CPU cooler height limitation: 160mm VGA length limitation: 330mm PSU length limitation: 160mm |
User Manual
- File Name
- Description
- Size
- Version
- Release Date
-
Manual
- Multi-language
- 8.7 MB
- 2018-07-05
